JINQIU MACHINERY was established in 1969, is famous brand of
Hydraulic Press Brake and hydraulic shear made in china. From
1979, we start to make press brake and shear. In 1993, we were
the first company in china to make electric-hydraulic

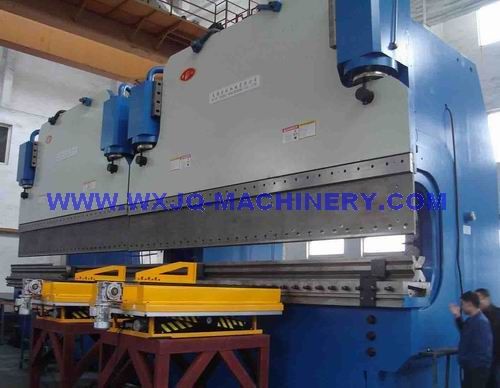

synchronized press brake, and then we developed CNC tandem press
brake. Till now, our biggest hydraulic press brake can be up to
3000T / 7000mm. CNC tandem press brake is mainly used in long
workpiece forming, like light pole, long truck body, big buidling
column forming.Â
• Heavy duty and finite element optimized machine frame,
big parts stress are released by heat treatment or
vibration.Â
• European CNC controller with complete bending computations and
tool library
• Bend accuracy and repeatability much higher than a conventional
press brake
• Fully synchronised Y1-Y2 axes to ± 0.01mm via proportional
valves and precision linear scales
• Fast AC servo backgauge (X) system controlled by CNC
• High stroke and daylight values
• Two front arms with front gauge, can slid on T slot
• Ram travel fully supported in low friction slideways
• Automatic working table crowning system controled by CNC
• European hydraulic systemÂ
• Oil tank level / temperature indicatorÂ
• ladder for machine top maintenance and checking
TECHNICAL FEATURES
1   Type    Mult-machine
Tandem Hydraulic CNC electro-hydraulic synchro
2   Working force Â
 2X500Ton
3   Length of table Â
 2X6000mm
4   distance between frames  Â
 4800mm
5   Throat depth   500mm
6   Open height    800mm
   stroke   320mm
7Â Â Â WorkingÂ
Speed   Unload   60mm/s
      Working Â
 6mm/s
      Return Â
 60mm/s
8   Main motor   30kw
   CNC system   Type: DELEM
DA56
Delem Co., Netherlands
2 Axis(Y1,Y2)
9   Tool   With 1 punching
and 1 bottom die
10Â Â Â Main Electric Elements in
cabinet   Schneider or Siemens Â
11   Seal in the cylinders Â
 NOK,Made in Japan
12   Gross weight   2x62000
kg
13Â Â Â Packing size(mm) LxWxHÂ Â
 2x6100x3850x5000
14Â Â Â Packing:Â Â Â With plastic
cover
The machine should be disassemble during transportation. Our
engineer should go to customer to assemble and adjust it.
Â
| بلد: |
China |
| نموذج رقم: |
2-WE67K
|
| سعر فوب: |
100000 ~ 50000 / Set (قابل للتفاوض)
أحصل على آخر سعر
|
| الموقع: |
- |
| سعر الحد الأدنى للطلب: |
100000 per Set |
| الحد الأدني للطلب: |
1 Set |
| تفاصيل التغليف: |
OCEAN SHIPMENT PACKAGE |
| موعد التسليم: |
90 DAYS AFTER CONFIRM |
| القدرة على التوريد: |
99 Set per Month |
| نوع الدفع: |
T/T, L/C |
| مجموعة المنتج : |
CNC Hydraulic press brake
|
