سعر فوب
أحصل على آخر سعر( Negotiable )
|1 Piece Minimum Order
بلد:
China
نموذج رقم:
Fist CNC 3040Z-DQ 3 Axis
سعر فوب:
( Negotiable ) أحصل على آخر سعر
الموقع:
-
سعر الحد الأدنى للطلب:
-
الحد الأدني للطلب:
1 Piece
تفاصيل التغليف:
cartons. fist.en.alibaba, com
موعد التسليم:
in stock
القدرة على التوريد:
15 Piece per Day
نوع الدفع:
Other, Money Gram, Western Union, T/T
مجموعة المنتج :
الشخص الذي يمكن الاتصال به Mr. Henry
3rd Floor 17th building,Hesheng Industrial Park,Heping Community,Fuyong Street,Baoan District, Guangzhou, Guangdong

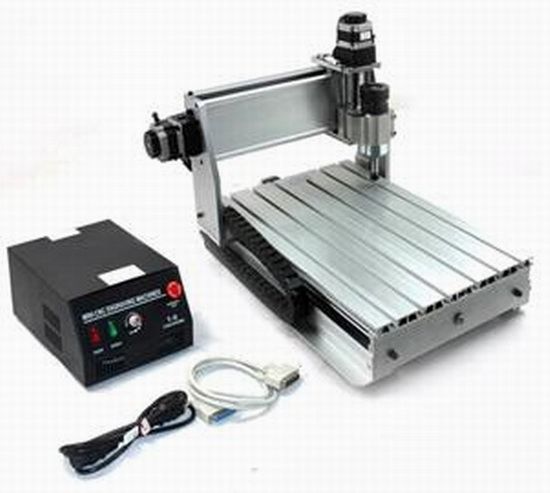

Specifications:
230W DC spindle
3 Axis
Ball Screw
Auto-checking function
Condition: New
CNC or
Not: CNC
Place of Origin: Guangdong,
China (Mainland)
Brand
Name: FIST
Model Number: Fist CNC
3040Z-230W
Voltage: 220v/110v
available
Power(W): 230W
Spindle
Dimension(L*W*H): 660x520*410mm
Weight: 28KG
Certification: CE
Warranty: 1
Year
After-sales Service
Provided: Engineers available to service machinery
overseas
Engraving
speed: 300-3000mm/min
Table
size: 525*320mm
X,Y,Z Working
Area: 390*280*55mm
Outside
dimension: 615*485*390mm
Max. Feeding
height: ≤70mm
Packaging
Details: Two standard cartons with
protective foam.
Product
Description
| Effective working travel | 390(X)mm*280(Y)mm*55(Z)mm |
| Shape dimension | 615x485*390mm |
| Max.workpiece dimension | 390mm*280mm< 70mm |
| Work table dimension | 525mm*320mm |
| Frame materials | aluminum alloy 6063 and 6061 |
| Driving units X axis | 1204 ballscrew |
| Driving units Y axis | 1204 ballscrew |
| Driving units Z axis | 1204 ballscrew |
| Sliding units X axis | Dia.16mm chrome plate shafts |
| Sliding units Y axis | Dia.20mm chrome plate shafts |
| Sliding units Z axis | Dia.12mm chrome plate shafts |
| Stepping motor type | 57 two-phase 1.8A |
| Spindle motor | Brand new 230w dc motor 11000PRM/Min |
| Principal axis collet | R11/3.175 mm |
| Repeat accuracy | 0.05mm |
| Spindle precision | radial beat acuities 0.03 mm |
| Control unit | triaxial one-piece drive + ring variable power + PWM speed |
| Carving Instructions | G code/TAB files/nc file/NCC files |
| Communication interface | through parallel connection with computer |
| Software environment | Windows xp |
| Maximum speed | 0-4000mm/min |
| Carving speed | 0-2500mm/min (different materials differ) |
| Machine weight | 28KG |
| بلد: | China |
| نموذج رقم: | Fist CNC 3040Z-DQ 3 Axis |
| سعر فوب: | ( Negotiable ) أحصل على آخر سعر |
| الموقع: | - |
| سعر الحد الأدنى للطلب: | - |
| الحد الأدني للطلب: | 1 Piece |
| تفاصيل التغليف: | cartons. fist.en.alibaba, com |
| موعد التسليم: | in stock |
| القدرة على التوريد: | 15 Piece per Day |
| نوع الدفع: | Other, Money Gram, Western Union, T/T |
| مجموعة المنتج : | Mini CNC router machine & Accessories |
