Acrylic 4229P double-sided tape

الوصف

Acrylic double-sided tape 4229P product information
Product model: 4229P
Adhesive type: high-performance acrylic foam double-sided tape
Substrate structure: Polypropylene foam (PP Foam) double-sided acrylic pressure sensitive adhesive
Color: commonly used black/white (other colors can be customized)
Thickness Options: 0.5mm / 1.0mm / 1.5mm / 2.0mm (support customization)
Core features
Super adhesion
The initial tack is high, reaching more than 90% of the final bond strength after 72 hours.
Excellent bonding effect on ABS, PC, metal, glass, acrylic and other materials.
Temperature and weather resistance
Operating temperature range: -30°C ~ 100°C (short-term withstand 120°C).
UV-resistant, damp and heat resistant, suitable for long-term outdoor use.
Cushioning and sealing
Closed-cell foam structure, moisture-proof and shock-absorbing, filling uneven surfaces.
Easy die-cutting processing

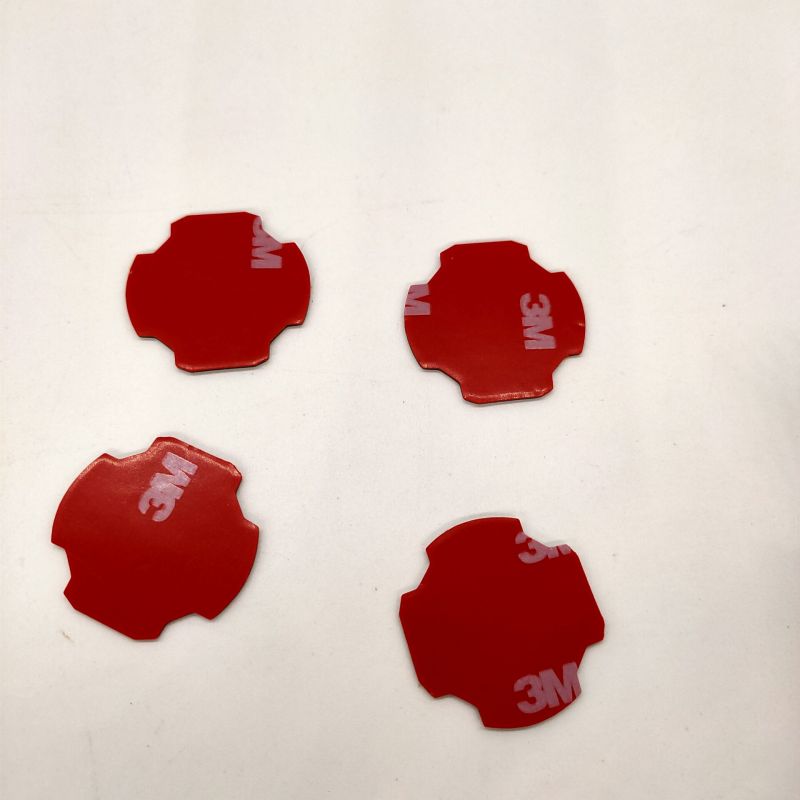

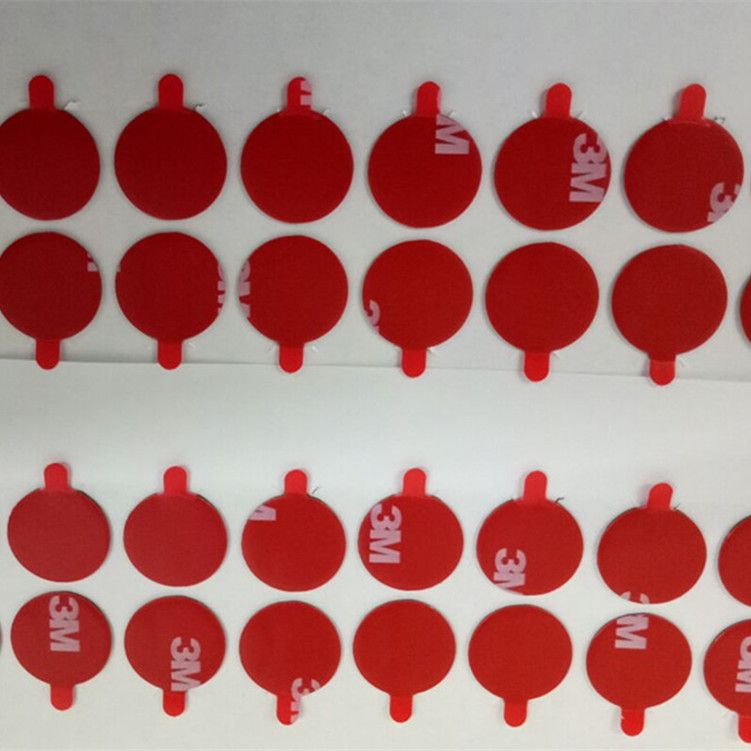

Support precision die-cutting into special-shaped shapes (such as dots, boxes, gears, etc.).
Technical Data Sheet
Item Parameter Value Test Criteria
Thickness 0.5mm/1.0mm/1.5mm(±0.05mm) ASTM D3654
180° peel strength (stainless steel) ≥18 N/cm PSTC-101
Adhesion (1kg load) ≥ 24 hours without displacement ASTM D3654
Tensile Strength ≥0.8 MPa ASTM D412
Flammability rating UL94 HF-1 (optional) UL recognized
Typical areas of application
Consumer electronics: mobile phone middle frame fixing, tablet battery bonding, camera module assembly.
Automotive parts: door trims, logo mounting, wiring harness fixing (instead of screws or buckles).
Home appliance industry: washing machine control panel, refrigerator sealing strip, air conditioning air deflector bonding.
Industrial assembly: instrument shell lamination, shockproof gasket, metal nameplate pasting.
