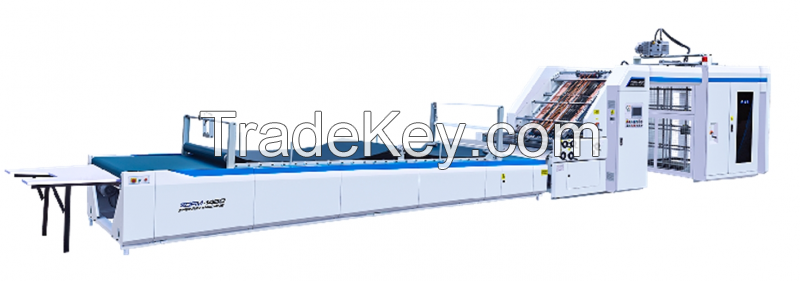

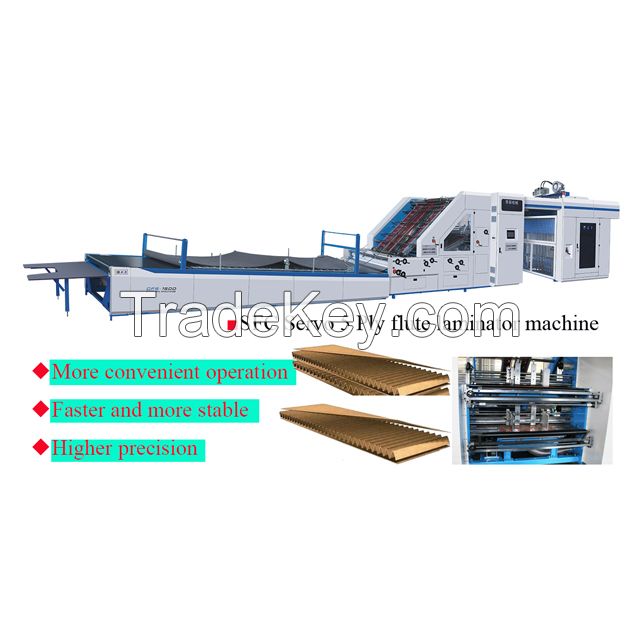

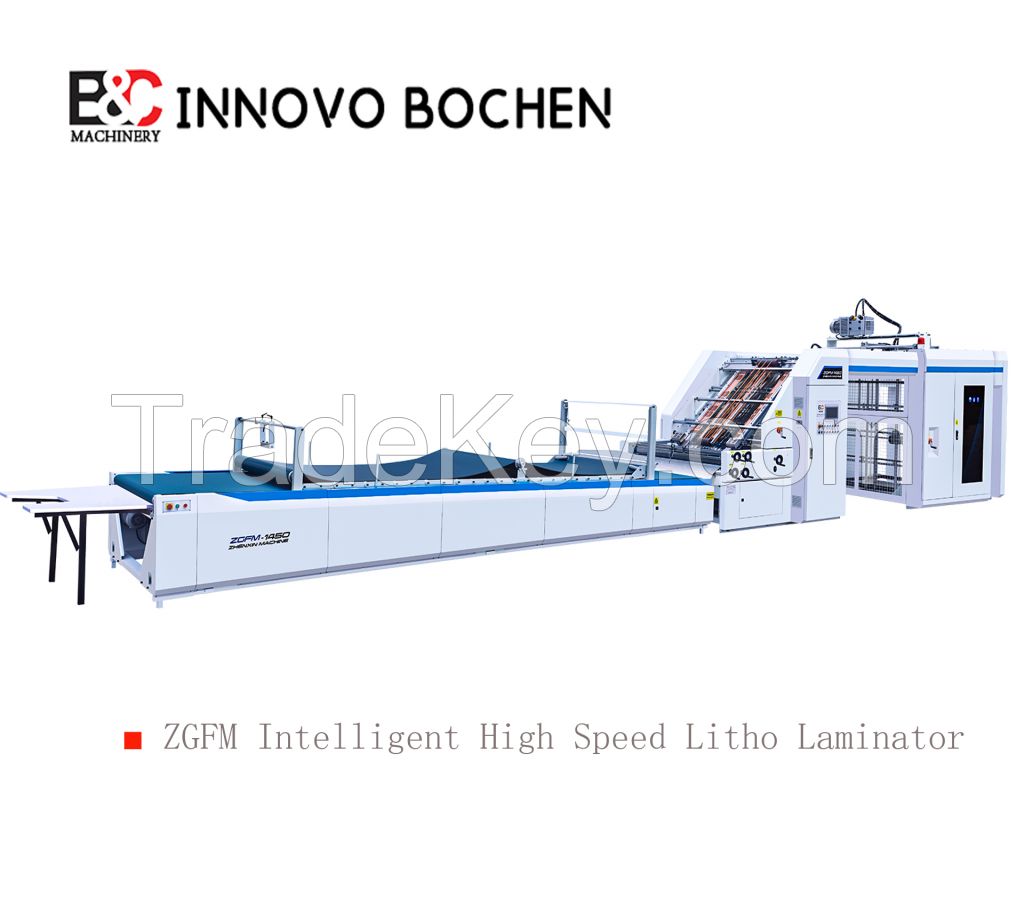

Automatic High Speed Flute Laminating Machine

الوصف

1. Product description

1.1 Function:

The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.

1.2 Structure:

A. Upper Paper Feeder: It can send stacks of 120-800gsm paper from above.
B. Bottom feed: It can send 0.5~10mm paperboard from below.
C. Gluing mechanism: The glued water can be applied to the fed paper.
D. Regulatory organization - Fits the two papers according to the set tolerances.
E. Pressurizing Conveyor... Presses the attached paper and conveys it to the delivery section.

1.3 Principles:

The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product
