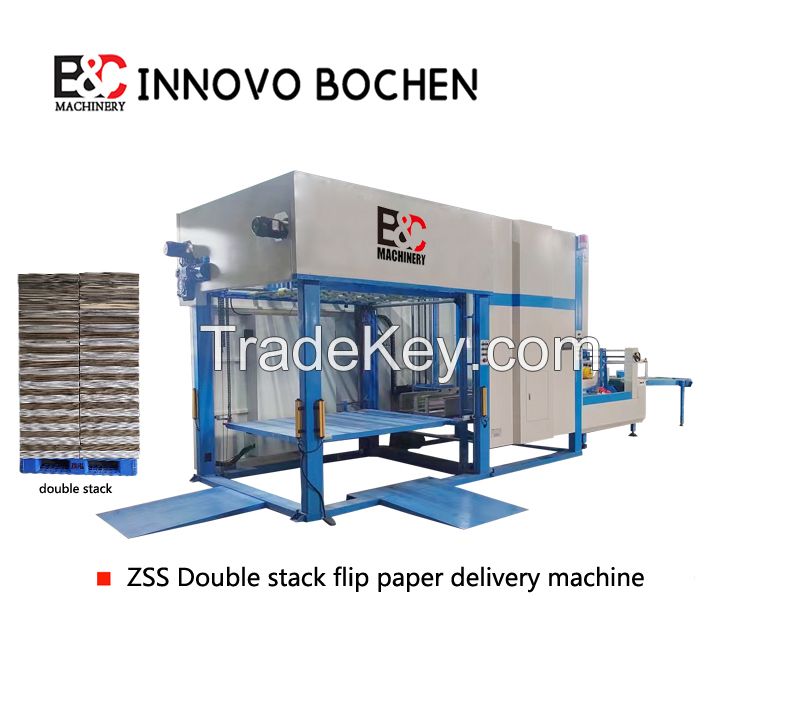

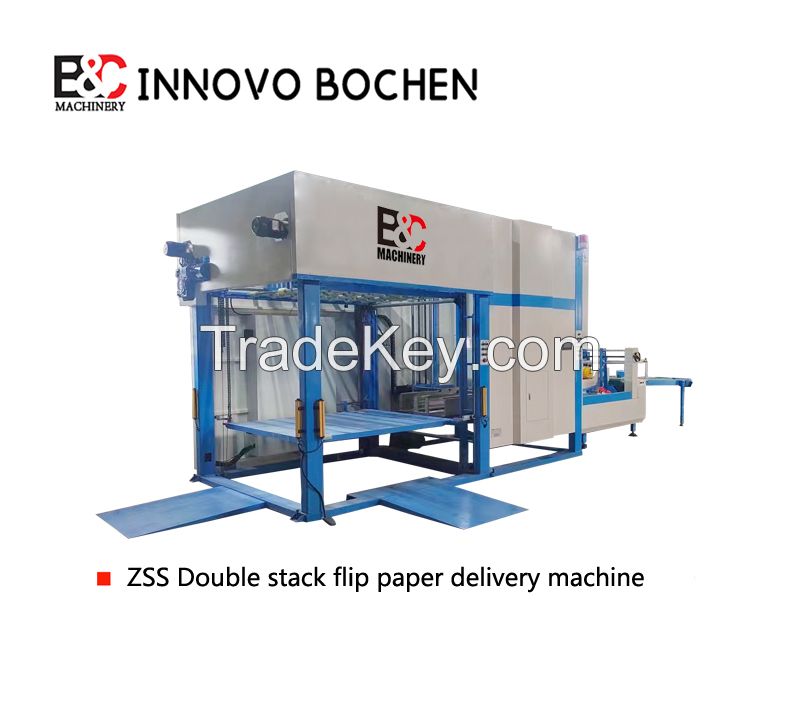

DS 1450/1650 Automatic double pile flip flop stacke DS 1450/1650 Automatic double pile flip flop stacke
Next

DS 1450/1650 Automatic double pile flip flop stacke

( Negotiable )

|

1 Set Minimum Order

بلد:

China

نموذج رقم:

005

سعر فوب:

( Negotiable ) أحصل على آخر سعر

الموقع:

china shanghai

سعر الحد الأدنى للطلب:

-

الحد الأدني للطلب:

1 Set

تفاصيل التغليف:

wooden package

موعد التسليم:

45 days after payment

القدرة على التوريد:

20 Set per Month

نوع الدفع:

L/C, Western Union, Money Gram

مجموعة المنتج :

الاتصال الآن
1st عام

الشخص الذي يمكن الاتصال به sofia-cn.seller1.innovo.054334

Chuzhou, Anhui

الاتصال الآن

الوصف

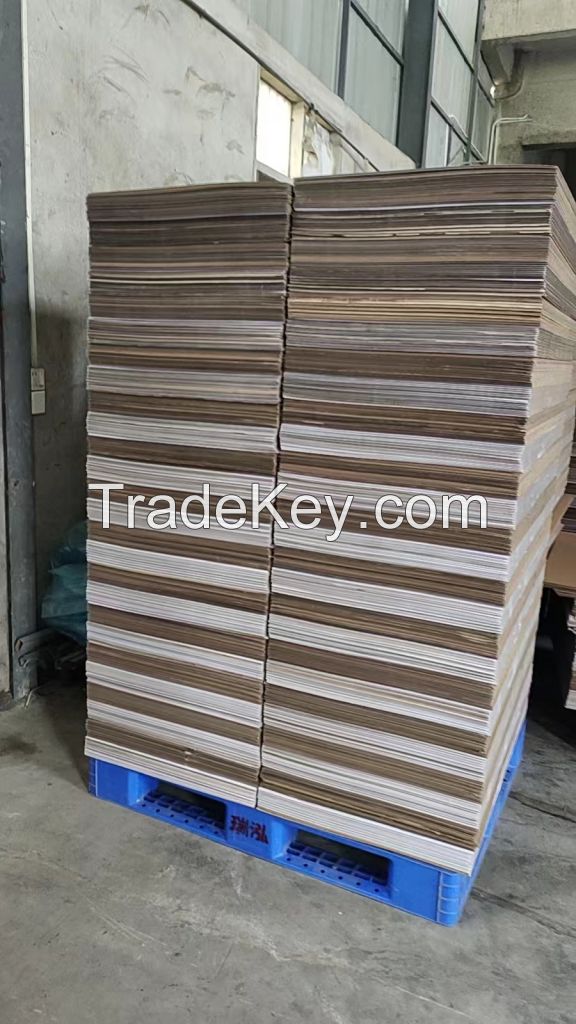

imageTheproduct is stacked in the center of palletwhich is more stable. It is convenient for transfer and reduces the risk of tipping.
Intelligentdouble-pile stacking of single pallet to reducespace occupation.
Put the pallet manually, feed out paper stack manually.
Matching 12,000 pcs/h speed flute laminating machine.
Flip mode can be changed to prevent the paper from being curved.
None stop collection function to improve production efficiency.
Reduce labor and reduce labor intensity.
Paper can be patted neatly and stacked into pile.
Machine can match with different manufacturers' flute laminating machine.
Paper can come out from back or side.
One -click adjustment (just enter the paper size).
Video monitoring (optional).

Specification:

Model DS1450 DS1650
Max. paper size 1500*1500mm 1700*1700mm
Min. paper size 450*550mm 450*550mm
Speed If A,B,C flute, the speed can be 8000-10000pcs
If E flute, the speed can be 12000pcs
If BE flute, the speed can be 5000-7000pcs
If BC flute, the speed can be around 5000pcs.


1. Separator Unit

This part has an acceleration function to quickly separate the sheets. At the same time, operators can pick out substandard products.

2. Count and Stacker

This part can pat the paper neatly and send it out. Paper stacker height can be adjusted by sensor position.

3. Turning Device

This part can send the paper to the delivery table, and the operation of this part is controlled by a servo motor. In addition, we can also adjust the flip mode in the screen.
4. Delivery Table

This part can pat the paper neatly and stack it into a paper pile. It has a non-stop delivery function.


5. Touch Screen

We can set the paper size here, the orientation will be adjusted automatically.

6. Automatic exit (OPTIONS)

This floor roller device can automatically feed out the paperstack.


7. Automatic pallet loader (OPTIONS)

This device automatically pushes the tray into the machine for easy operation.


بلد: China
نموذج رقم: 005
سعر فوب: ( Negotiable ) أحصل على آخر سعر
الموقع: china shanghai
سعر الحد الأدنى للطلب: -
الحد الأدني للطلب: 1 Set
تفاصيل التغليف: wooden package
موعد التسليم: 45 days after payment
القدرة على التوريد: 20 Set per Month
نوع الدفع: L/C, Western Union, Money Gram
مجموعة المنتج : Flip flop stacker
