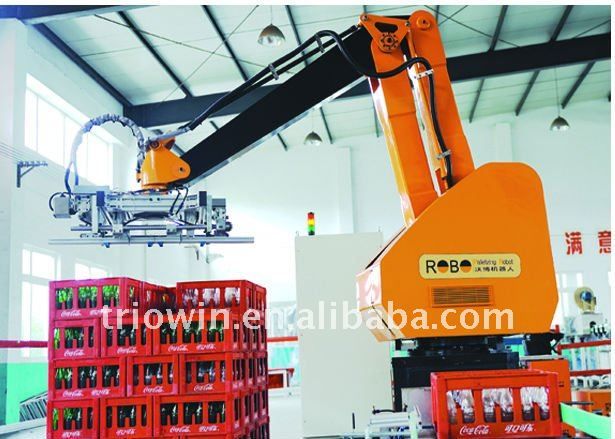

The Robots, Model TPR **0 have a unique linear executing mechanism, based on a four axis and four servo-motors which enables their easy handling and makes them really precise.
Â
The material chosen for their realization, as carbon and aluminum, allows them to be lighter and faster, and to save the power consumption.
Â
They are delivered with a touch screen interface which allow to program all the running cycles requested, and also all the parameters of the product to be palletized. This interface can modify, while the robots are running, some parameters, respecting the production requirements.
Â
Equipped with an electrical cabinet, remote control, robot base, and safety rail
Â
Â
| Item | Specification | |
| Type | TPR***0 | |
| Controlled axis | 4 axes( A,B,C,D) | |
| Installation | Floor mount | |
| Motion Range | A(left and right) | **0° |
| B(up and down) | ***0mm | |
| C(front and back) | ***0mm | |
| D(tong) | **0° | |
| Max. load Capacity | **0 kg | |
| Handing Capacity | ***0 cycles/hour | |
| Drive method | Electric servo drive by AC servo motor | |
| Repeatability | ± 0.5 mm | |
| Power Consumption | 8 KW | |
| Weight | ***0 kg | |
