End Face Milling Machine for H-beam or Box Column with Taiwang Milling Head

Description

• Used for H-beam, T-beam, Box-beam and cylinder end face milling to prepare the connection face;
• The milling head is 0°--45° adjustable so as to mill the required bevels of end face of beams;
• The bed is welding structure, annealed after welding;
• Slide table is forged into shape, composing into sliding-couple with bed;
• Standard facer available in any local market;
• With work-piece hydraulic clamping and positioning rack;

1. Introduction

This machine is used for milling the end face of H-beam, box-beam and cylinder. The milling head is 0°--45° adjustable so as to mill the required bevels of end face of beams.

2. Main Parameters

3. Main features

The standard models of our end face milling machines have the following features:

• Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
• The bed is welding structure, annealed after welding.
• Facer is TX32A type, of reasonable structure, reliable performance, extensive speed range, good rigidity, low noise, high efficiency and convenient operation.
• Slide table is forged into shape, composing into sliding-couple with bed;
• Standard facer available in any local market;
• With work-piece hydraulic clamping and positioning rack;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Standard color:

4. Structure drawing

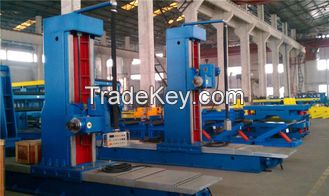

5. Reference photo

6. Comparative advantage

• ISO9000&CE certified;
• International warranty;
• Punctual delivery;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;
