Techwin Fiber Optic Visual Fault Cable Locator TW3105

China

TW3105

( Negotiable ) أحصل على آخر سعر

-

-

1 Set

Packaged in Standard Export Carton

7 days after payment

-

Western Union, L/C, T/T

fiber testing

الاتصال الآن

مواصفات المنتج

Central Wavelength : 650nm±10nm(635nm can be required on r Emitter Type : FR-LD Optical Connector : 2.5mm universal connector For 1.25mm connectors Output Power : Optional choice for 1mw,3mw,5mw,10mw on actual needs Operating model : Both CW and Pulse available

الوصف

Specifications



Visual Fault Locator

-2.5mm universal connector

-for 1.25mm connectors

-FC (Male)-LC (Female) adapter can be provided on rqst

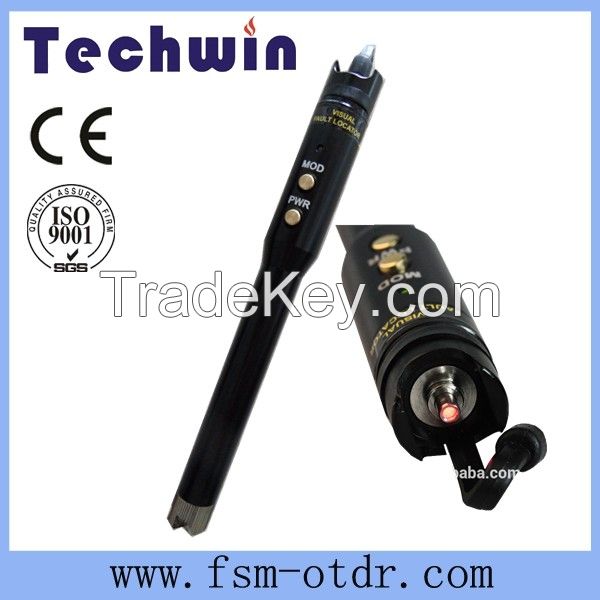

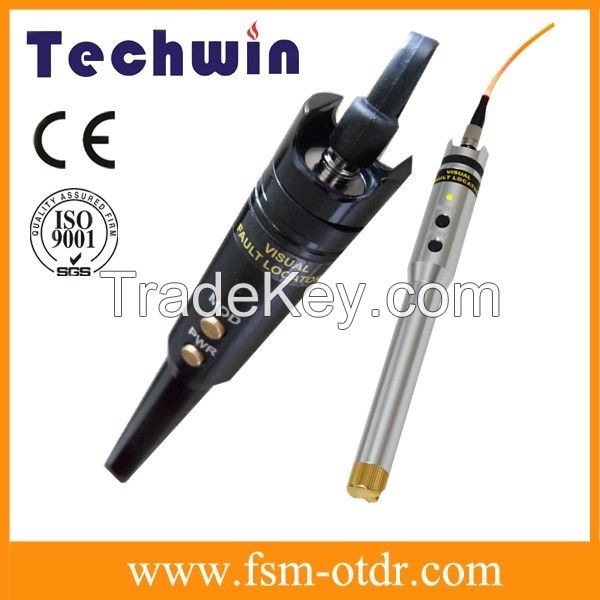

Visual Fault Locator TW3105







Pen Type is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes.







Features:



Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.



Finding the faults of OTDR dead zone



End-to-end visual fiber identification











2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC (Female) adapter can be provided on requests



Operates either in CW or Pulsed



Constant output power



Lower Battery warning



Long battery life (up to 60 hours)



Crash-proof and dust-proof design for laser head



Laser case ground design prevents ESD damage



Burning testing to ensure the reliability.



Portable and rugged, easy to use.



Guarantee to CE standards include EMC, EMI, ROHS.







Specifications




























































Type



TW3105 Pen-type Visual Fault Finder



Central Wavelength



650nm±10nm



Emitter Type



FP-LD



Output Power



1mw, 3mw, 10mw can be optional on customer request



Optical Connector



2.5mm universal connector; For 1.25mm connectors, FC (Male)-LC (Female) adapter can be provided on customer requests



Operating Model



Both CW and Pulse available



Pulse Frequency



2~3Hz



Power Supply



2 AA alkaline batteries



Battery Operating Time



6****@*** ≥65hour

650nm
